IoT Embedded Systems Raspberry Pi & Arduino

IOTIF Trainer Kit

Create Connected Devices and Explore the Future of IoT

The IOTIF Trainer Kit is a comprehensive embedded systems and Internet of Things (IoT) development platform engineered to transform theoretical concepts into practical innovations. Designed for students, educators, researchers, and technology enthusiasts.

See Features

Core Objectives

Embedded C Programming

Raspberry Pi Dev

IoT Fundamentals

Cloud Applications

Introduction

A Complete Ecosystem for Embedded Innovation

Built around Arduino Nano and Raspberry Pi, the trainer kit enables users to develop, program, and evaluate embedded applications using an extensive collection of onboard peripherals.

From acquiring sensor data to controlling motors and communicating wirelessly, every resource is readily available on a single platform.

Why Choose IOTIF?

It provides a unified workspace, eliminating the need to assemble multiple standalone modules before beginning a project.

Scalable Architecture

Scales from introductory embedded programming to advanced connected-device applications.

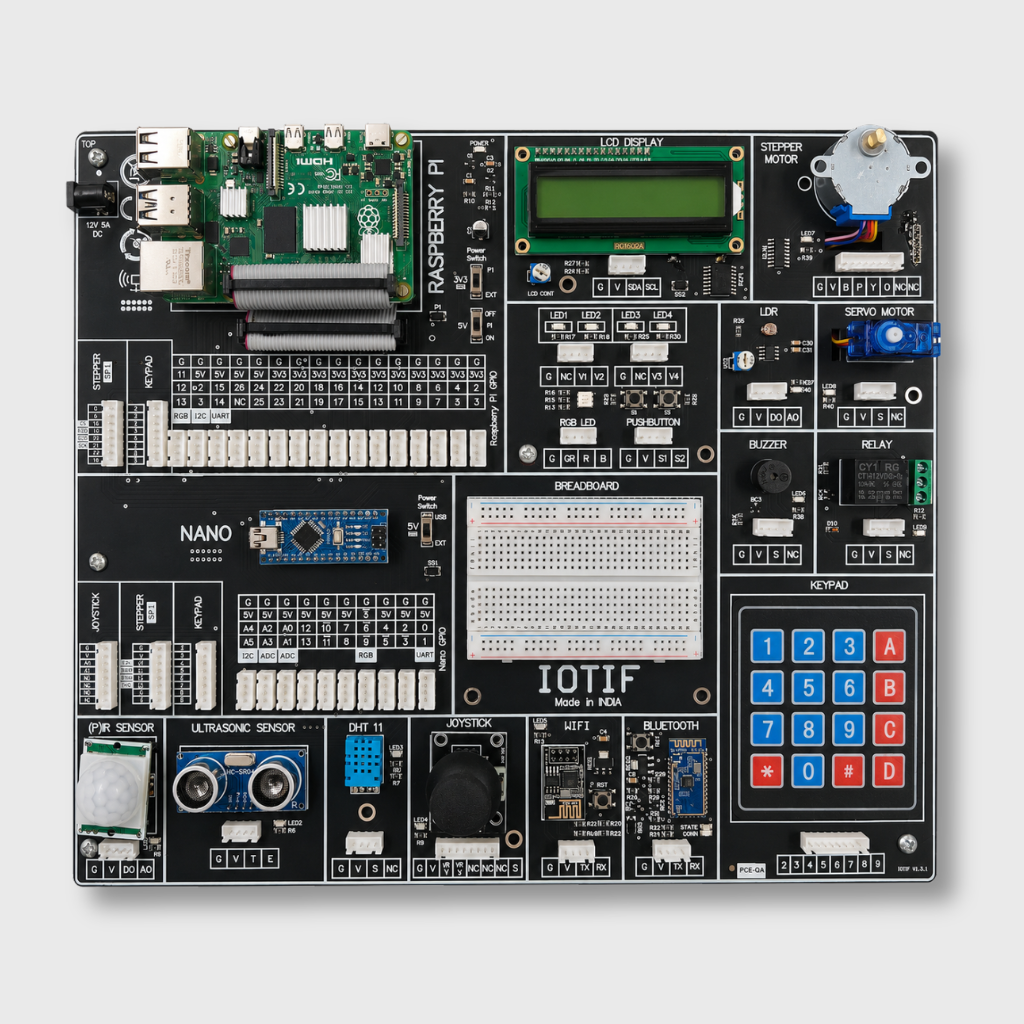

Interactive Preview

Examine Every Detail

Get a hands-on feel for the IOTIF Trainer Kit before it even arrives. Our high-fidelity 3D model lets you inspect all the onboard modules, sensors, and microcontrollers.

Scroll or pinch to zoom into specific components.
Click and drag to rotate the board 360 degrees.
Fully interactive and true to the physical hardware.

* Disclaimer: The actual color of some electronic components might differ slightly in the physical product.

Instructions

Scroll/Pinch to Zoom

Drag to Rotate

Fully Interactive

Key Features

Integrated Platforms

Arduino Nano & Raspberry Pi

Wireless Comms

Built-in Wi-Fi and Bluetooth

Onboard Sensors

Displays, motors, and modules

Breadboard Area

For custom circuit development

Real-Time Control

Monitoring and automation

Expandable

Architecture for peripherals

Technical Details

Onboard Modules

Computing Platforms

Raspberry Pi Interface
Arduino Nano Interface
Breadboard Prototyping Area
GPIO Expansion Headers

Sensors

PIR Motion Sensor
Ultrasonic Sensor
DHT11 Temp & Humidity Sensor
LDR (Light Sensor)
Joystick Module

Communication & Display

ESP8266 Wi-Fi Module
Bluetooth Module
16x2 LCD Display
4x4 Matrix Keypad
RGB LED & Status LEDs

Control, Power & Output

Servo & Stepper Motors
Relay Module & Buzzer
12V DC Power Input
Integrated Power Distribution
External Peripheral Connectors

Learning Outcomes

Embedded C Programming

Arduino Development

Raspberry Pi Programming

GPIO Interfacing

IoT Fundamentals

Sensor Data Acquisition

Wireless Communication

Home Automation

Cloud Applications

Industrial IoT Concepts

Applications

Embedded Systems Edu.

IoT Training

Engineering Labs

Smart Home Automation

Industrial Monitoring

Wireless Sensor Networks

Academic Projects

Prototype Development

Innovation Projects

Technical Specifications

Parameter	Specification
Product	IOTIF Trainer Kit
Development Platforms	Raspberry Pi & Arduino Nano
Wireless Communication	Wi-Fi & Bluetooth
Display	16×2 LCD
Input Devices	Matrix Keypad, Push Buttons, Joystick
Sensor Modules	PIR, Ultrasonic, DHT11, LDR
Output Devices	Servo, Stepper Motor, Relay, RGB LED, Buzzer
Expansion	Breadboard & GPIO Headers
Power Input	12V DC Power Adapter
Application Domain	Embedded Systems & IoT

Accessories Included

12V DC Power Adapter 2-Pin AC Power Cable Micro HDMI to HDMI Cable Ethernet LAN Cable USB Data Cable (12-inch) 4-Pin RMC Connector Cable 8-Pin RMC Connector Cable
